Steel bar thread rolling machine z28-80 for sale

  • 1 - 1 Sets
    $3,300.00
  • >=2 Sets
    $3,100.00
Model Number:
Z28-80
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$160.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Application:
Bars
Production Capacity:
5-12(pcs/min)
Brand Name:
PENGHAO
Voltage:
380V
Power(W):
5.5KW
Dimension(L*W*H):
1480*1330*1440mm
Weight:
1750kg
Certification:
ISO CE
Warranty:
1 Year
Applicable Industries:
Building Material Shops, Construction works
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Online support
The maximum rolling pressure:
150KN
The thread rolling wheel diameter:
120-170mm
Roller of maximum width:
110mm
Rolling diameter:
6-48mm
Thread rolling aperture:
54mm
Spindle speed:
36,47,60,78r/min
Hydraulic Power:
2.2kw-kw
Processing range of the maximum diameter:
6-48mm
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden box
Port
Tianjin/Qingdao
Product Description

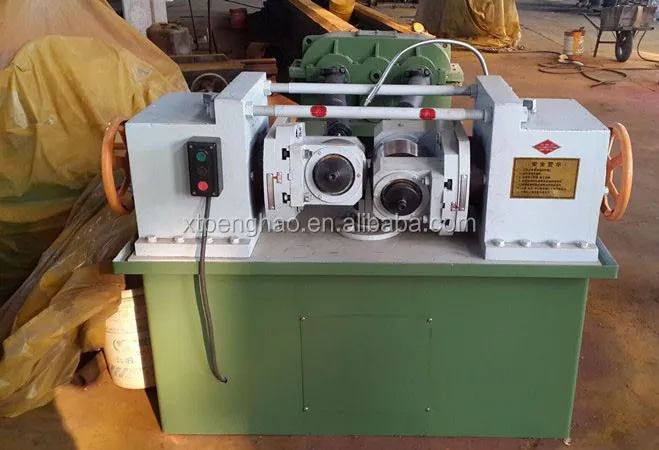

Z28-80 thread rolling machine



Main Features of thread rolling machine


1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.

2.This machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

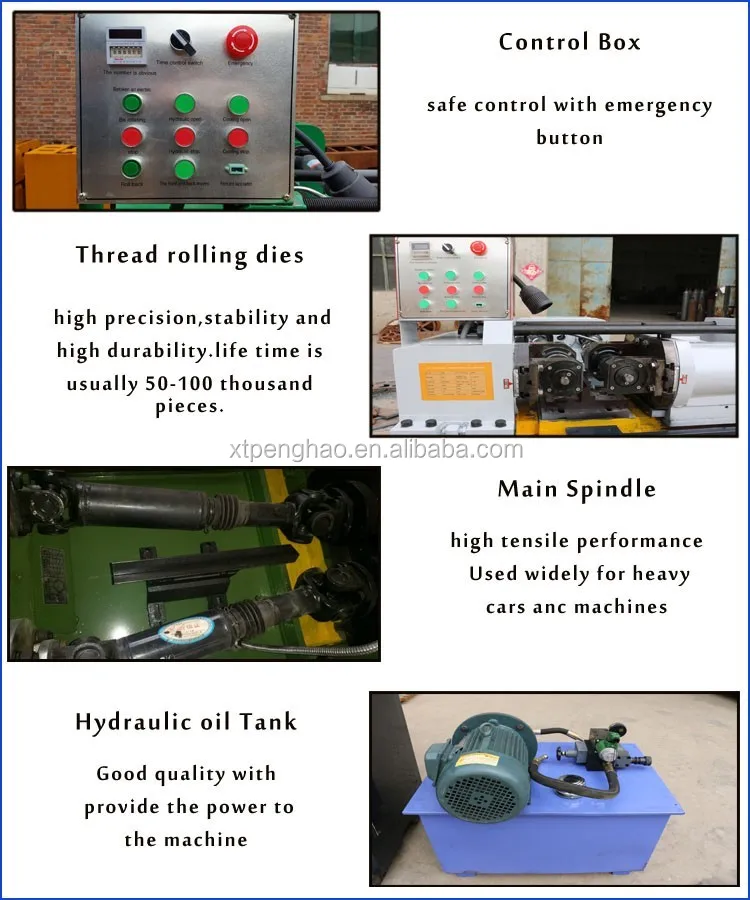

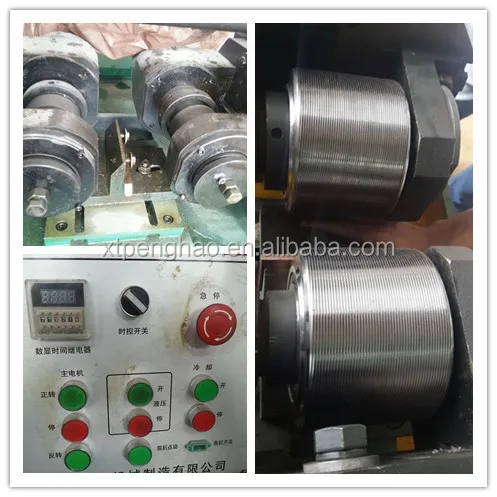

Detailed Images







Certifications
Packing & Delivery

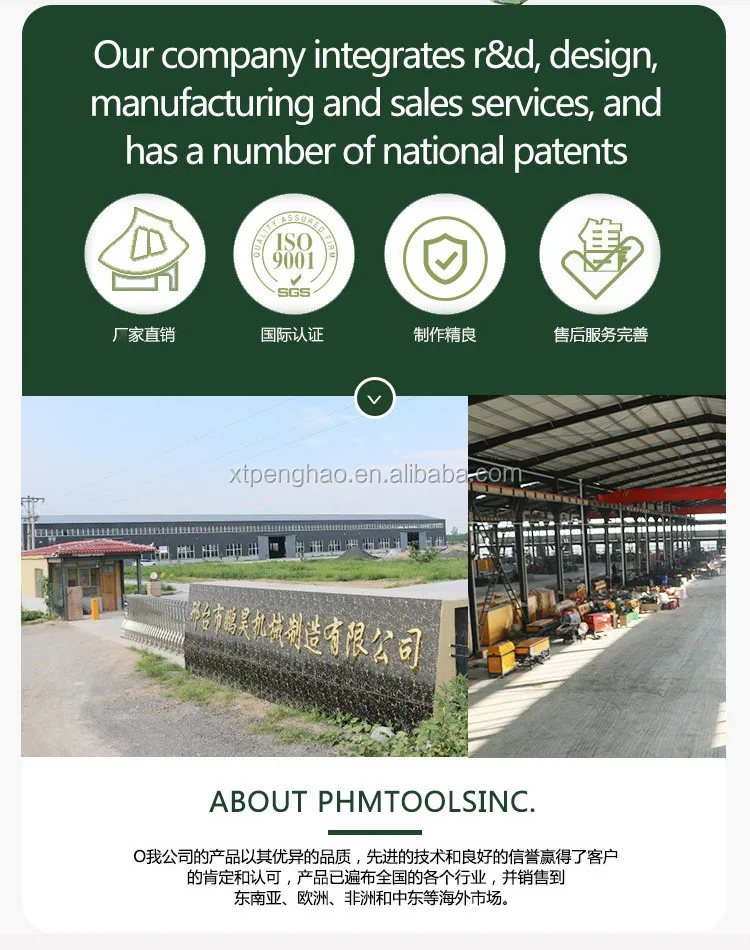

Company profile

Xingtai penghao Machinery Manufacturing Co., Ltd

Xingtai penghao Machinery Manufacturing Co., Ltd was founded in 2010.Mainly specialized in the production of Thread rolling machine,CNC stirrup bending machine, bar straightening cutting machine, steel hook machine, reducing machine, ect.We are located in the famous Xingwan industrial base in Xingtai City, Hebei Province. Covering over 6000 square metres , now have more than 120 employee , more than 20 technicians among them.With reasonable design, advanced technology, well-made, stable performance,our products are best-selling at domestic and foreign.
